AFDDs are increasingly common in consumer units and now mandatory in certain buildings — but what do they actually do, and do you need one? Here’s a plain explanation.

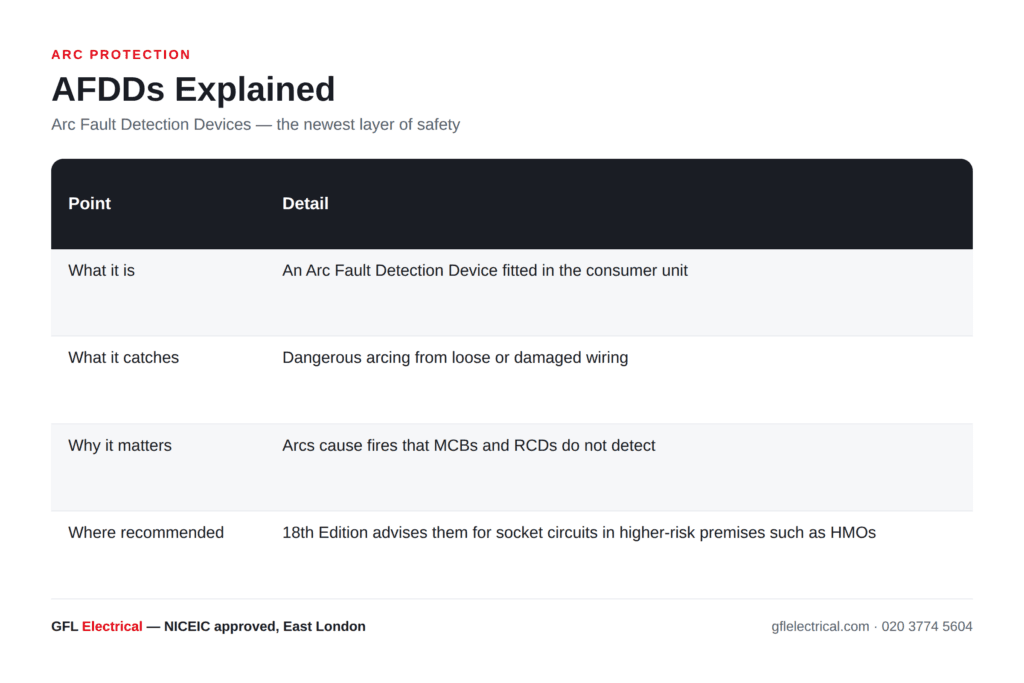

What an AFDD is

An AFDD (Arc Fault Detection Device) is a protective device fitted in the consumer unit that detects dangerous electrical arcing and disconnects the circuit before it can start a fire.

Arcing is the sparking that happens at damaged cables, loose connections, or pinched/trapped flexes — for example a cable nicked by a screw, a worn appliance lead, or a loose terminal. This arcing generates intense heat and is a leading cause of electrical fires.

Why normal protection doesn’t catch it

Here’s the key point: MCBs and RCDs don’t reliably detect arcing.

• An MCB trips on overload or short circuit — but a series arc may not draw enough current to trip it.
• An RCD trips on earth leakage — but arcing often doesn’t leak to earth.

So a dangerous arc can sit there generating heat without tripping anything — which is exactly the gap AFDDs fill. They use electronics to recognise the distinctive signature of arcing and cut the power.

Where AFDDs are now required

Under BS 7671:

• Amendment 2 (2022) required AFDDs for socket-outlet final circuits (up to 32A) in higher-risk residential buildings, HMOs, purpose-built student accommodation, and care homes.
• Amendment 4 (2026) made AFDDs mandatory on socket circuits in HMOs, student accommodation, and care homes.
• In other premises (ordinary homes), AFDDs are recommended but not mandatory.

So if you let an HMO, AFDDs on the socket circuits are now a requirement — see our HMO electrical requirements.

Should I fit them in my own home?

For a standard home they’re not required — but they’re a genuine safety enhancement, especially worth considering if:

• You have older wiring prone to deterioration
• There’s a higher fire risk (e.g. vulnerable occupants)
• You’re already upgrading the consumer unit and want maximum protection

They do add cost (more than standard breakers), so it’s a value judgement for ordinary homes — but a real upgrade in protection.

How they’re fitted

AFDDs are installed at the origin of the circuit in the consumer unit, often as a combined AFDD/RCBO device that provides arc, earth-leakage, and overload protection in one. They comply with BS EN 62606. Fitting them is part of a consumer unit upgrade — see our fuse box replacement service.

The cost angle

AFDDs are more expensive than standard breakers, which is why an HMO board upgrade now costs more than it used to — a legitimate, regulation-driven increase, not an upsell. For ordinary homes, you’re weighing the extra cost against the extra protection.
